Electrical Junction Box Punching Press Machine Mechanical Fixed Table JH21 series

Product Categories
PSL (WUHAN) SMART EQUIPMENT CO.LTD.
Contact Now

Electrical Junction Box Punching Press Machine Mechanical Fixed Table JH21 series

Brand Name : PSL

Model Number : JH21-200

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30-50 sets per month

Delivery Time : 45-60 working days

Packaging Details : Naked in container

Type : C-Type Structure

Application : Metal Sheet Stamping

Material : welded steel structure

Usage : Pressing Metal Products

Function : Elctrical press,Metal Sheet punching

Nominal Pressure : 250KN - 4000KN, 25T - 400T

Cnc or not : Normal

Control : PLC

Power source : 22 kw

driving : Pneumatic dry combination friction clutch-brake

Voltage : 380V,as your requirements

Color : Gray White or customized

Weight : 20000kg

Dimension(l*w*h) : 2600*1600*3800mm

After-sales service provided : Video technical support online

Warranty : One Year

Contact Now

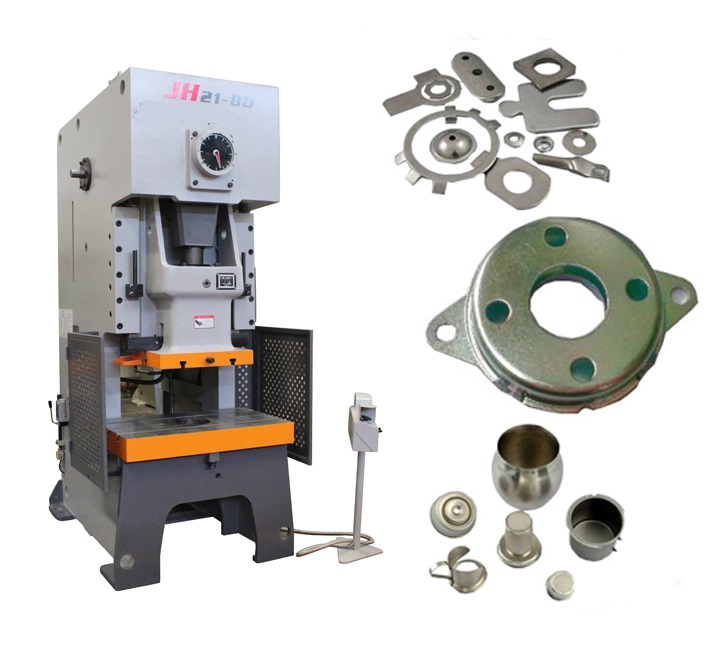

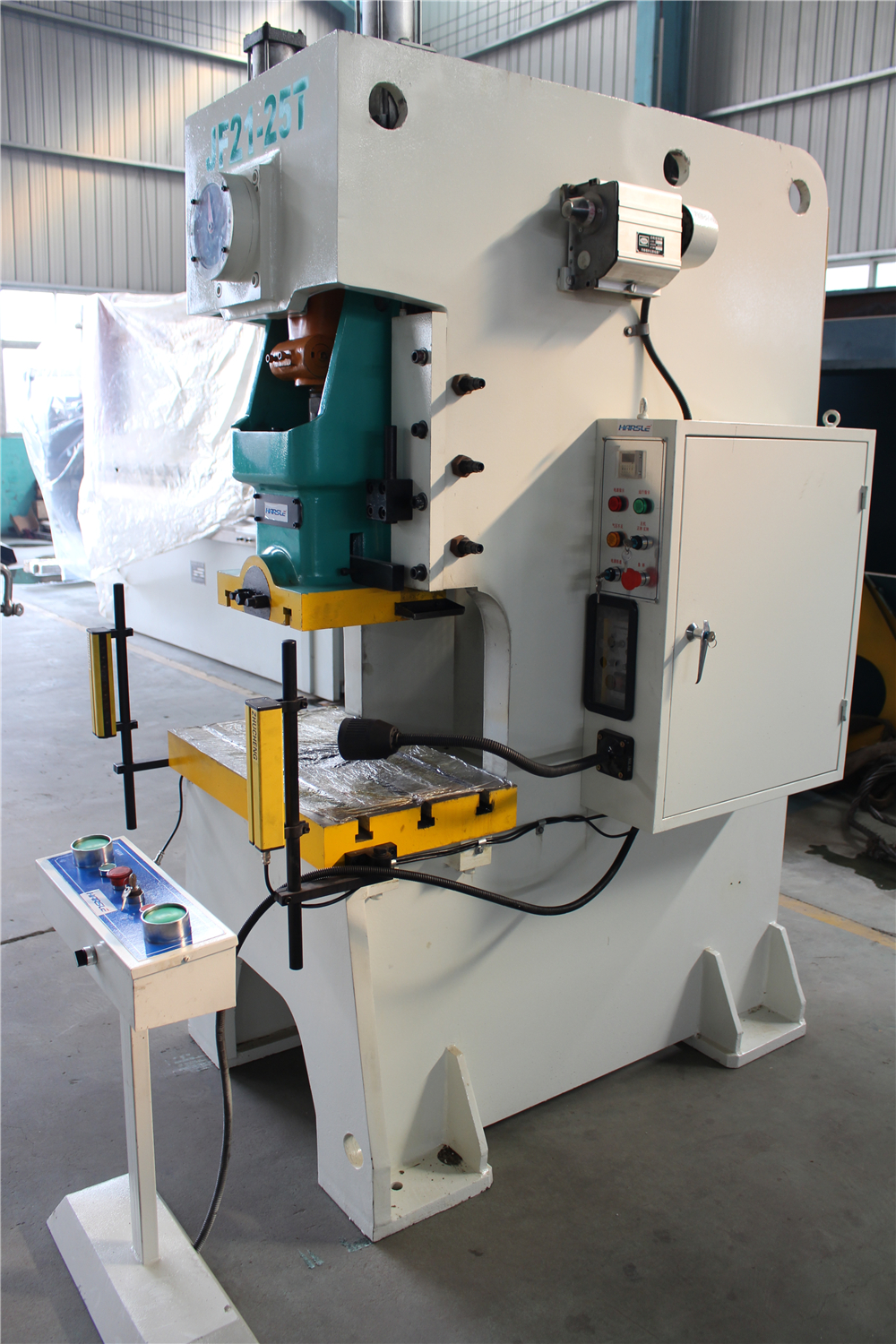

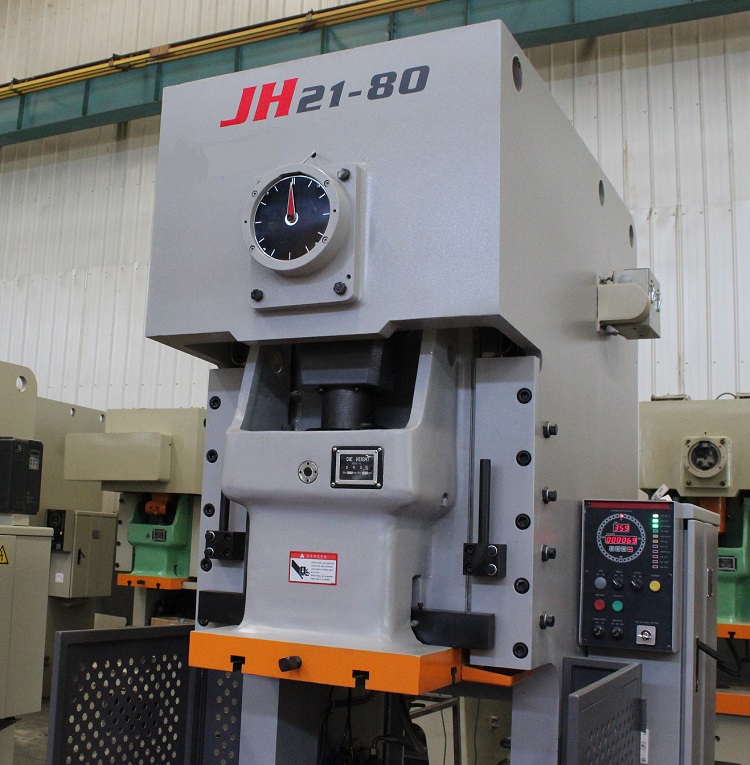

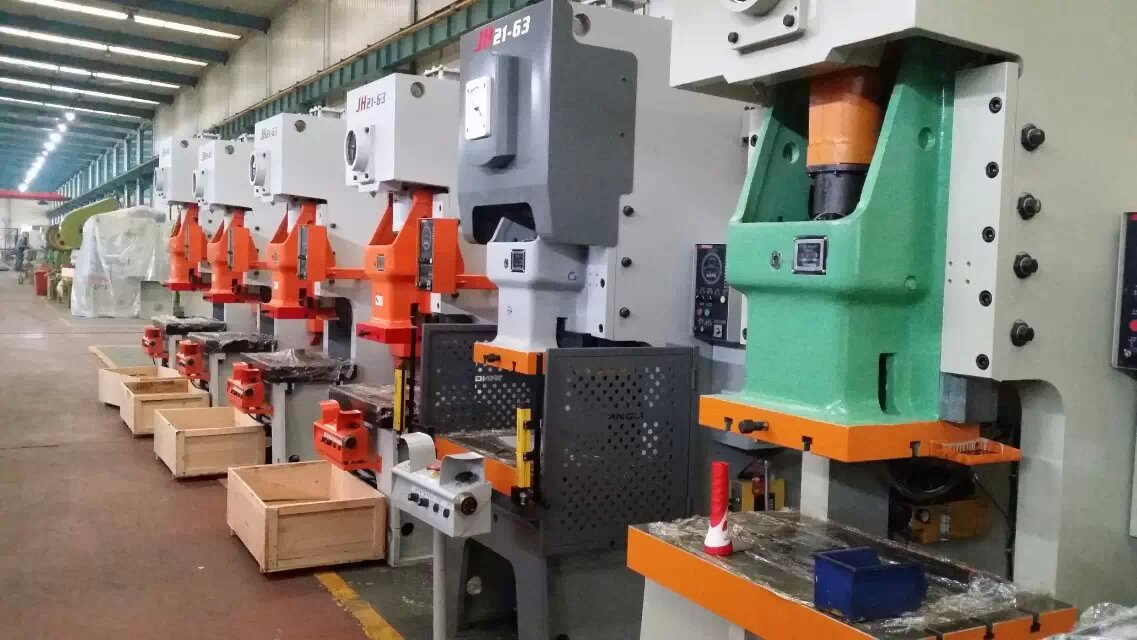

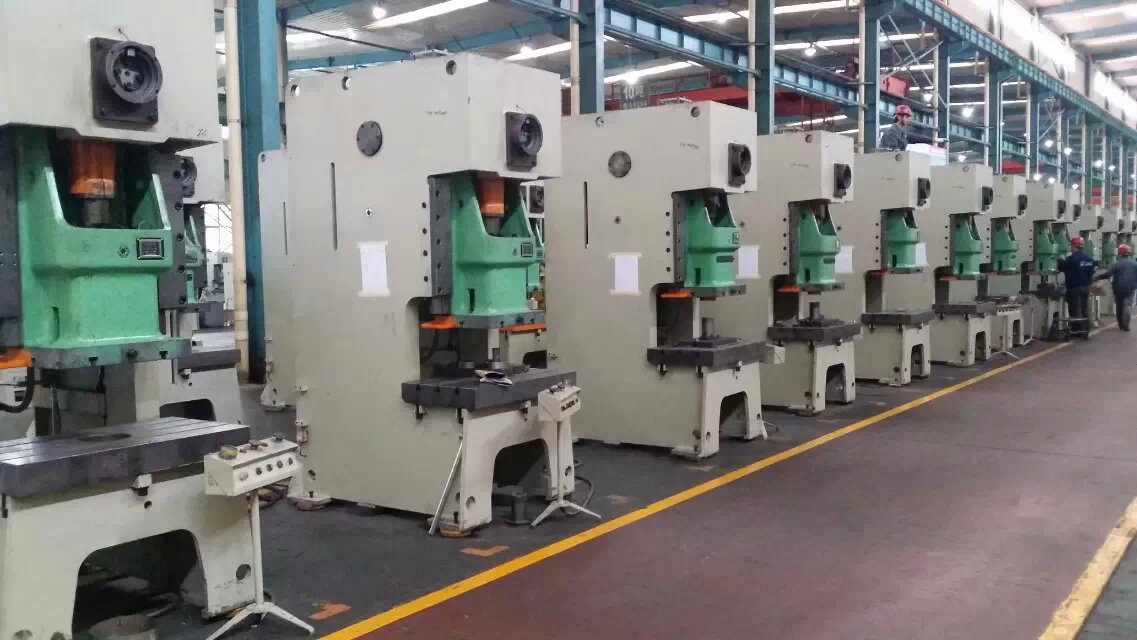

JH21 Series C-Frame Fixed Table Punching Press machine

I. Brief introduction of structure,

  • The frame is welding with whole steel plate which has high rigidity, reasonable structure and beautiful design.
  • The press adopts the vertical crankshaft structure. The distance of fulcrum is short and the crank is rigid.​
  • The press adopts the low inertia combined dry friction clutch and brake , which has little passive inertia, low energy consumption, reliable interlock of clutch and brake and long longevity.
  • The slide is a whole cast form construction which adopts hydraulic overload protector with agile and reliable action. After overload, it can reset automatically to reduce the down time and improve the availability of press. High pressure oil seal which is imported from German is installed in slide high pressure cylinder.
  • The shut height adopts electric adjustment, which has digital display. Its display is 0.10mm.
  • The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.
  • The press has pneumatic balancer, which reduce the second stroke. It runs smoothly to improve the dynamic precision of press.
  • The control part adopts PLC, which is efficient to guarantee the reliability of control part.
  • The press adopts dual valve , which can guarantee the safety and reliability of clutch.
  • The press adopts cam controller which be combined with proximity switch (Schneider). It can send signal exactly within the range of 360°and control the criterion of various actions and the harmony of assist machine to improve the reliability of press.
  • The main press could choose auto feed drive output axis, which is convenient for auto product line to match auto feed device and unreel and flattening
  • Customer could choose light curtain to protect operator.(OPTION)
  • Customer could choose pure die cushion. (OPTION)

Besides, the press has two-hand operating button and foot pedal switch, which can realize Continuous, Single and Inch mode.

II. Main Specification of JH21-200,

Technical

specification Model

Description

JH21-200B
Nominal force KN 2000
Nominal force stroke mm 6
Slide stroke mm 200
SPM Min-1 25-50
Max. shut height mm 450
Slide adjustment mm 110
Bed dimension(FB×LR) mm 840X1400

Bottom side of Slide

(FB×LR)

 mm 650×850
Bolster thickness mm 160
Main motor power kW 22
Air pressure MPa 0.6

Outline dimension

(F.B X L.R X H)

 Mm 2680X1645X3800
Net weight Kg 20000

III. JH21 Series technical parameters,

Pneumatic Punching Machine
UNIT
JH21-25
JH21-45
JH21-60
JH21-80
JH21-125
JH21-160
JH21-200
Nominal Capacity
KN
250
450
600
800
1250
1600
2000
Slide Stroke
mm
80
120
140
160
180
200
220
Slide Strokes
Fixed
Times/min
100
80
70
60
50
45
45
Variable
(optional)
Times/min
60-100
50-80
45-70
40-60
35-50
30-45
25-45
Max. Die Height
mm
250
270
300
320
350
400
450
Die Height Adjustment
mm
50
60
70
80
90
100
110
Throat Depth
mm
210
225
270
310
350
400
430
Distance Between Uprights
mm
450
515
560
610
670
736
910
Slide Bottom Size
FB
mm
250
340
400
460
520
580
650
LR
mm
360
410
480
540
620
700
880
Shank Hole Size
Diameter
mm
40
50
50
50
70
70
70
Depth
mm
65
60
70
65
90
100
100
Work table Size
FB
mm
400
440
520
600
680
760
840
LR
mm
720
825
930
950
1100
1170
1400
Thickness
mm
80
110
130
140
155
165
180
Bed Opening Hole Diameter
mm
150
150
150
180
200
220
250
Overall Dimensions
FB
mm
1496
1585
1540
1765
2040
2305
2600
LR
mm
945
1075
1200
1200
1320
1420
1540
Height
mm
2120
2391
2570
2725
3035
3215
3800
Motor Power
KW
3
5.5
5.5
7.5
11
15
18.5
Motor Speed
r/min
1410
1410
1440
1440
1440
1440
1440
Length
mm
1350
1400
1600
1900
2300
2350
2700
Width
mm
950
1080
1200
1360
1450
1500
1600
Height
mm
2160
2300
2550
2800
3200
3250
3800
Weight
kg
3100
3800
5500
7500
12000
13500
20000

Electrical Junction Box Punching Press Machine Mechanical Fixed Table JH21 series

Electrical Junction Box Punching Press Machine Mechanical Fixed Table JH21 series

Electrical Junction Box Punching Press Machine Mechanical Fixed Table JH21 series

Electrical Junction Box Punching Press Machine Mechanical Fixed Table JH21 series

Electrical Junction Box Punching Press Machine Mechanical Fixed Table JH21 series
